Airflow in a PC

Airflow refers to the movement of air inside your PC case, driven by the fans from the case, CPU cooler, and graphics card. It’s a fundamental part of cooling your system, as poor airflow can result in high temperatures and cause hardware to function improperly.

Although many cases come with pre-installed fans, additional ones are often needed to improve air circulation. A well-planned airflow system pulls fresh air in and pushes hot air out, helping to maintain safe operating temperatures.

Key factors for effective airflow include the number of fans, their placement, and the airflow direction. Keeping an eye on system temperatures helps identify issues, and upgrading or adding fans can make a significant difference in cooling performance. In short, good airflow is critical to your PC’s performance and longevity.

Classic Airflow Setup – Ideal for Gaming PCs

To achieve efficient airflow, intake fans should be installed at the front, bottom, or side of the case, directing cool air into the system. Exhaust fans should be mounted at the rear and top, including any on the CPU cooler, to expel hot air.

Avoid overloading the case with fans, as too many can disrupt airflow rather than improve it. While this setup is commonly recommended, your case design, components, and room layout may require slight adjustments. Placing the PC on a desk instead of under it also helps airflow by allowing more space around the case.

How to Identify Fan Airflow Direction

To determine which way a fan blows air, look at its sides: the one with the logo is usually the intake side, and the side showing the fan’s motor and grille is the exhaust. When installing fans, make sure the intake side faces the direction you want air to enter and the exhaust side faces where air should exit. Consistent airflow direction among all fans improves cooling efficiency.

Proper AIO Liquid Cooler (All-in-One) Positioning

Correct placement of an AIO cooler is vital for optimal cooling performance. Always verify your case and cooler dimensions to avoid compatibility issues.

Top Mounting:
Mounting the radiator at the top is typically ideal. Since air rises, this helps prevent air pockets from forming in the cooling loop. Make sure the tubes are relaxed and not overly bent.

Front Mounting:
If the cooler must be mounted on the front due to space constraints, position the tubes at the bottom of the radiator. This prevents air from getting trapped and ensures smoother liquid circulation.

Tube Positioning:
Keep the tubes as straight and natural as possible to maintain consistent liquid flow.

Thermal Paste

Thermal paste is a heat-conductive material applied between the CPU and the cooler to improve heat transfer by filling microscopic surface imperfections. It enhances thermal conductivity, prevents overheating, and extends component lifespan.

Apply a small amount—roughly the size of a grain of rice—in the center of the CPU. You can spread it with a spatula or rely on the pressure from the heatsink to distribute it evenly. Just a thin layer is sufficient.

Make sure to secure the heatsink firmly after applying the paste. Replace the thermal paste at least once a year or when you notice rising temperatures. Use 99% isopropyl alcohol and a soft cloth to clean old paste from both the CPU and heatsink

Fans

Fans are essential for maintaining a cool and stable system. They help regulate airflow and keep component temperatures within safe ranges.

The most common fan sizes are 120mm and 140mm (80mm is rare). Always check your case’s compatibility before buying. Fans typically come with either a 4-pin PWM or a 3-pin DC connector.

PWM (4-pin):

• Allows precise control of fan speed.

• Adjustable through BIOS or fan control software.

• Recommended if your motherboard supports it.

DC (3-pin):

• Offers basic speed control but with less precision.

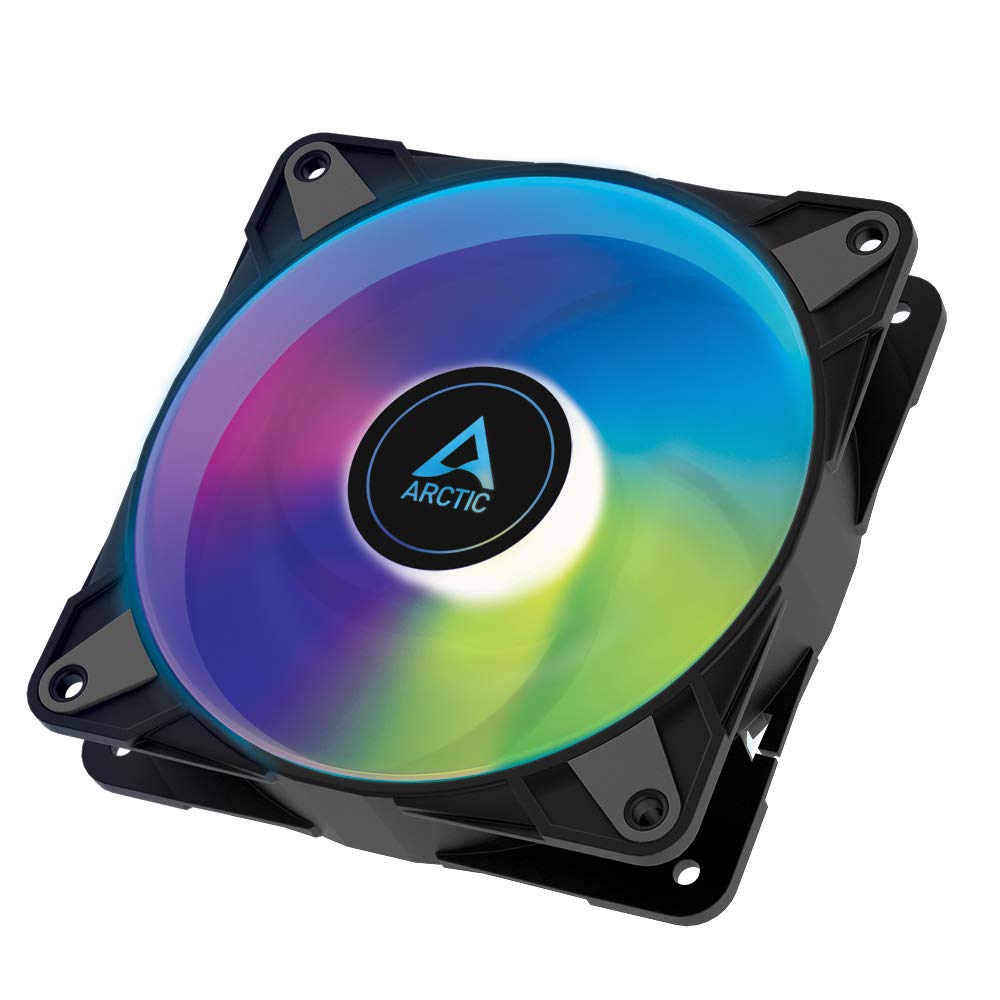

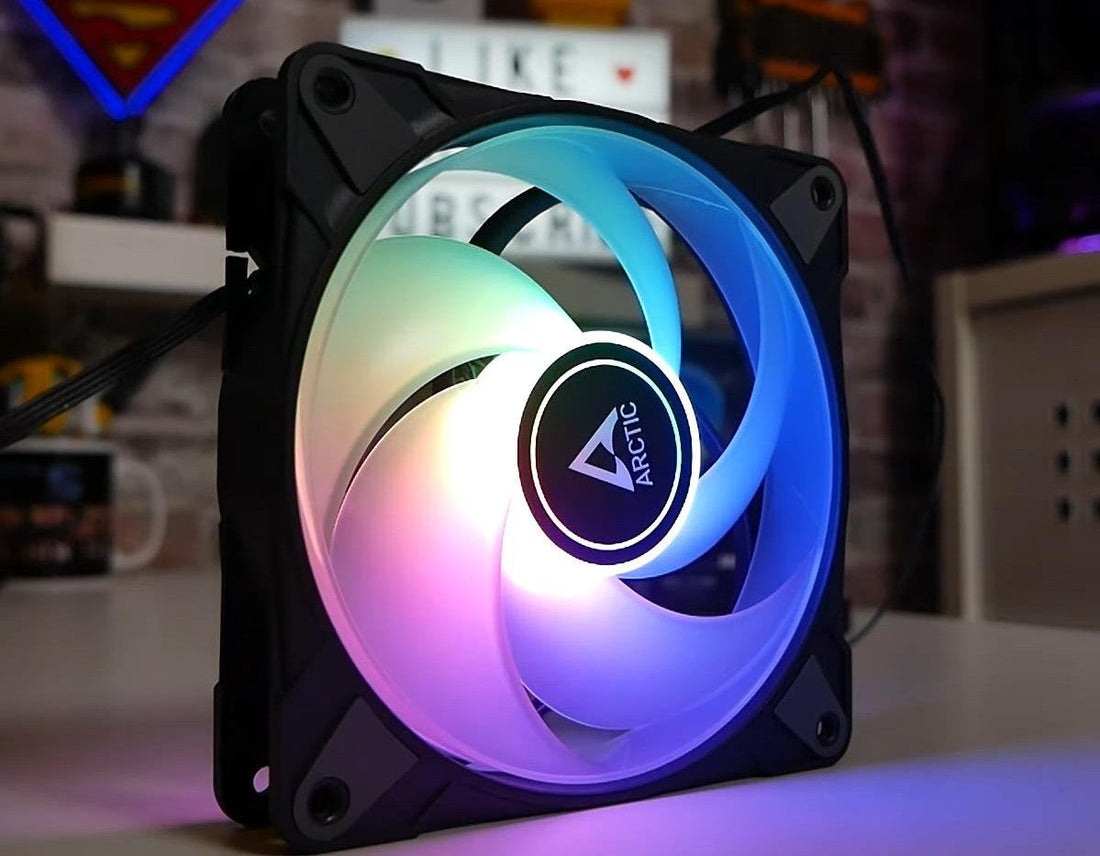

Some fans also include PST (Power Sharing Technology) connectors, allowing multiple fans to be connected in series (daisy-chained) and controlled from a single header. Be sure to check the fan and motherboard manuals for limits on this setup.

Fan Noise

Fan noise can arise from high RPMs, faulty fans, or too many fans running at once.

To Reduce Noise:

• Choose fans designed for low noise.

• Set custom fan curves in BIOS or software to lower speeds during light use.

• Use anti-vibration pads or rubber grommets to minimize vibration noise.

Balancing airflow and noise is key to a pleasant and efficient computing experience.

Vibration

Fan vibration can create unwanted noise and potentially cause long-term damage if not controlled. It can also amplify sound through the case.

Reduce Vibration by:

• Using rubber mounts or anti-vibration pads.

• Choosing high-quality fans with built-in vibration dampening.

• Ensuring all fans are securely and evenly mounted.

Fan Hubs, Controllers, and Software

• Hubs: Allow multiple fans to be powered and connected through a single motherboard header. They simplify wiring but usually don’t allow speed or lighting control.

• Controllers: Offer manual or software-based control of fan speeds and, in some cases, RGB lighting. These can connect directly to the motherboard or be powered separately.

Pay attention to your motherboard’s available USB headers when connecting multiple hubs or controllers.

Dust Management

Dust is a major contributor to overheating and performance degradation in PCs, yet often overlooked. It clogs fans, heatsinks, and vents, restricting airflow and causing hardware to work harder or fail prematurely.

Dust accumulation forces fans to spin faster, increasing noise and wear, and can trigger thermal throttling, reducing performance to protect components.

Cleaning Tips:

• Power off and unplug the PC before cleaning.

• Use compressed air to blow dust off fans, heatsinks, and other components.

• Hold fans still while cleaning to avoid damaging them.

• Use an anti-static cloth for surfaces.

• Clean or replace case dust filters regularly.

The cleaning frequency depends on your environment: every 3 months in dusty areas, or every 6 months in cleaner spaces. Positioning your PC on a desk rather than the floor reduces dust buildup.
