SSD vs HDD: Choosing the Right Storage for Your PC

When selecting storage for your computer, the choice between an SSD (Solid State Drive) and an HDD (Hard Disk Drive) can make a major difference in overall system speed and responsiveness. These two storage types use completely different technologies to read and write data, and that distinction directly affects performance, reliability, and the overall user experience.

SSD vs HDD

HDDs are the traditional form of computer storage. They rely on spinning magnetic platters and a mechanical read/write arm to locate and access data. While they offer large storage capacities at a lower cost, their mechanical nature results in slower access times, higher latency, and more noise and heat generation.

SSDs, on the other hand, are solid-state devices with no moving parts. They store data on flash memory chips, providing much faster access speeds and improved durability. This allows operating systems and applications to load almost instantly and makes multitasking noticeably smoother.

In today’s standards—especially in 2024—SSDs have become the norm for primary storage. For a modern PC, an SSD offers a faster, quieter, and more reliable experience than any HDD.

Main SSD Types

SATA SSDs:
These drives connect to the motherboard using a SATA cable and require a separate power connector. They’re usually more affordable and significantly faster than mechanical drives but are still limited by the SATA interface’s maximum speed (around 550 MB/s).

M.2 NVMe SSDs:
These compact drives slot directly into the motherboard’s M.2 PCIe connector, eliminating cables and delivering much higher performance than SATA drives. Their direct connection to the PCIe bus allows for ultra-fast data transfers ideal for gaming, content creation, and multitasking.

Read & Write Speeds

The PCIe interface provides much greater bandwidth than SATA, enabling modern SSDs to reach extraordinary transfer speeds. Faster drives reduce boot times, accelerate app launches, and shorten game loading screens—improving overall responsiveness across the system.

When comparing SSDs, focus on two metrics:

Read Speed (MB/s):
Measures how quickly data can be accessed. High read speeds mean faster startup times, file loading, and smoother workflow transitions.

Example: Premium M.2 NVMe SSDs can exceed 11,000 MB/s in sequential read speeds.

Write Speed (MB/s):
Indicates how quickly data can be saved or transferred. This affects file copying, video rendering, and software installations.

Example: High-end models can achieve over 9,000 MB/s in sequential writes.

Tip: Larger SSDs (1TB or more) often deliver better performance due to higher internal parallelism, so consider choosing a higher-capacity model when possible.

PCIe Slot Compatibility

PCIe (Peripheral Component Interconnect Express) is the high-speed interface that connects critical internal hardware such as GPUs and SSDs.
While most modern motherboards include at least one M.2 PCIe slot, it’s vital to confirm that your board supports the same PCIe generation as your chosen SSD.

Key points to remember:

PCIe M.2 slots enable the highest transfer rates currently available for storage devices.
The slot’s generation determines maximum speed:
- PCIe 3.0: Up to ~3,500 MB/s
- PCIe 4.0: Up to ~7,500 MB/s
- PCIe 5.0: Beyond 12,000 MB/s (requires compatible CPU and motherboard)
Backward compatibility is supported, but using a faster SSD in an older slot will limit its potential speed.

Installation tips:

Insert the SSD at an angle into the M.2 slot and secure it with the provided screw or latch.
Check your motherboard manual to identify the primary slot for maximum performance.
Some motherboards include built-in heatsinks for M.2 drives; if yours doesn’t, consider using one to maintain stable temperatures during heavy workloads.

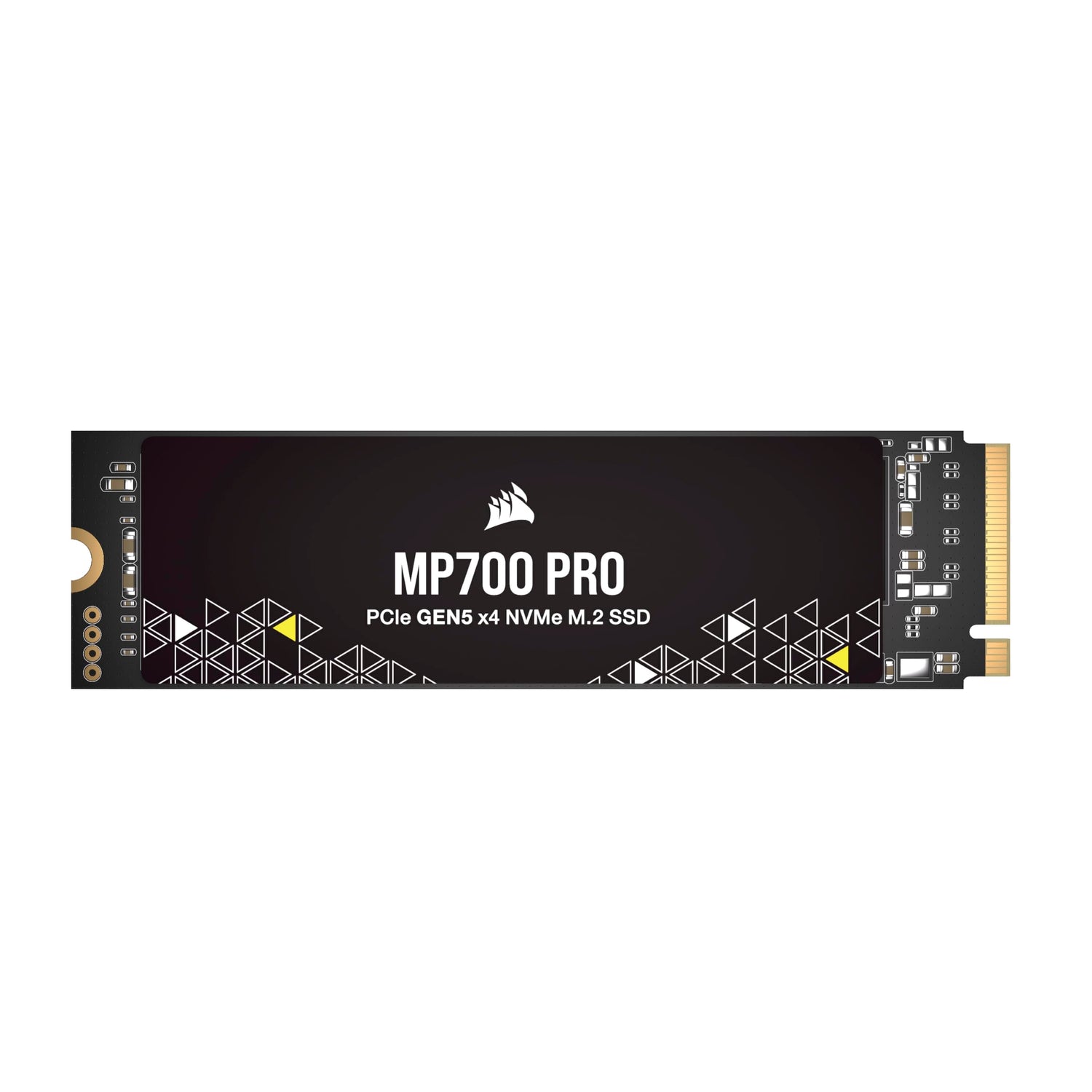

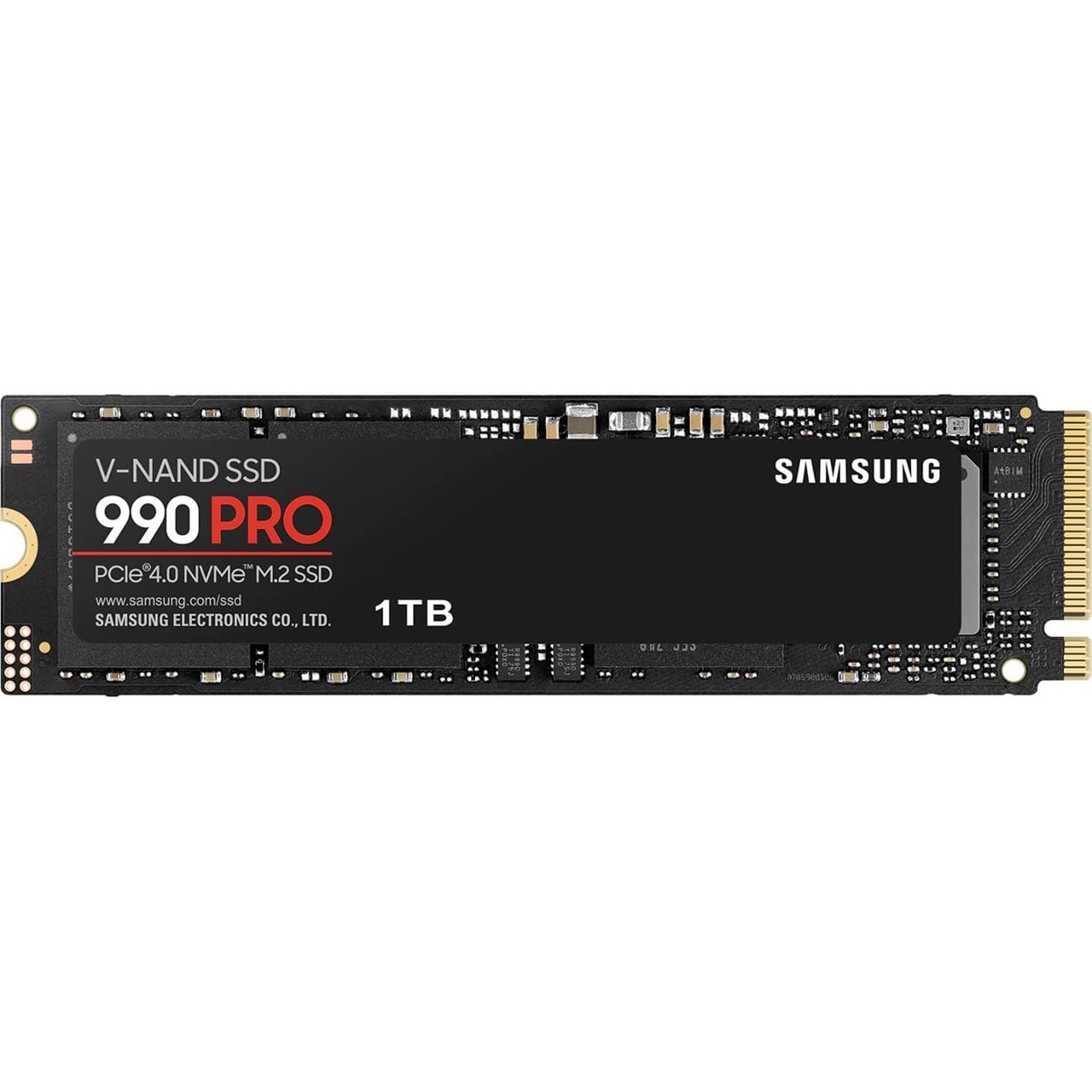

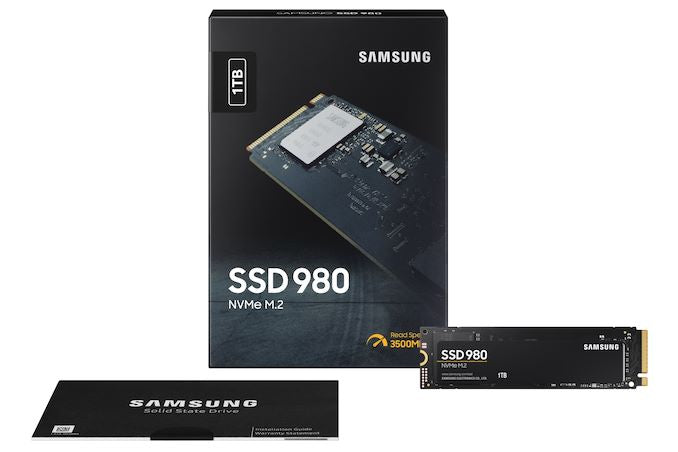

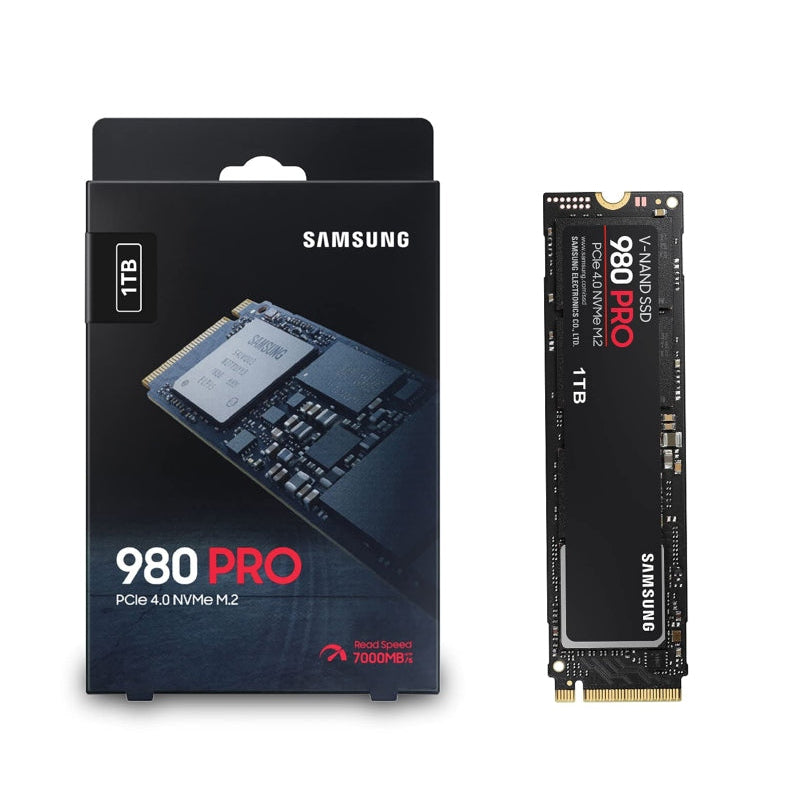

Recommended SSDs

For the best balance between capacity, speed, and longevity, choose an SSD with at least 1TB of storage. This ensures enough space for:

The operating system
Multiple large games
Creative or productivity applications

A higher-capacity SSD not only gives you more room but also tends to perform better under load.
Given that modern game sizes continue to increase, investing in a 1TB–2TB NVMe SSD now will save you from future storage headaches and guarantee a faster, smoother gaming experience.
